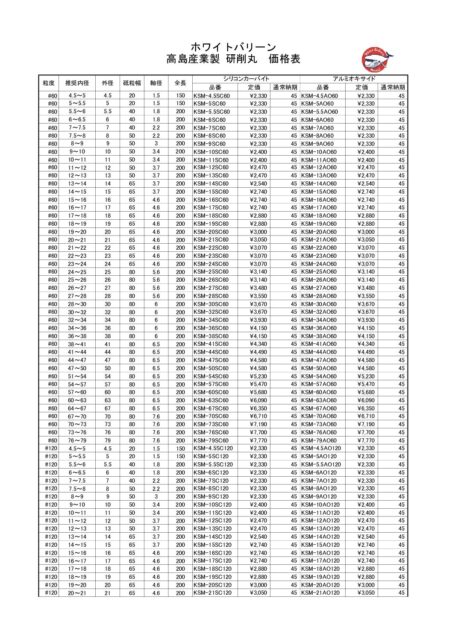

download
製品のカタログや資料をPDFでダウンロードできます。
研削丸はブラシ先端部に砥粒玉が付いた構造で、円筒内に発生するバリの除去や内径研磨仕上げ等に最適なツールです。
砥粒玉を保持しているナイロン線に弾性がある為、段のある部品や凹凸のある部分も仕上げることができます。
粒度は #60～#1,000、砥粒はシリコンカーバート（炭化ケイ素）とアルミオキサイド（酸化アルミナ）から選択でき、粗削りから微細削りの研磨仕上げまでが可能です。
ドリルチャック、コレットチャック、マシニングやロボットに取付けご使用ください。
明治45年創業のブラシメーカー、髙島産業製。
規格品以外でもご要望に合わせて製作できます。
| 推奨内径 | シリコンカーバイト | ||||||
|---|---|---|---|---|---|---|---|
| #60 | #120 | #180 | #240 | #320 | #600 | #1000 | |
| 4.5～5 | KSM-4.5SC60 | KSM-4.5SC120 | KSM-4.5SC180 | KSM-4.5SC240 | KSM-4.5SC320 | KSM-4.5SC600 | KSM-4.5SC1000 |
| 5～5.5 | KSM-5SC60 | KSM-5SC120 | KSM-5SC180 | KSM-5SC240 | KSM-5SC320 | KSM-5SC600 | KSM-5SC1000 |
| 5.5～6 | KSM-5.5SC60 | KSM-5.5SC120 | KSM-5.5SC180 | KSM-5.5SC240 | KSM-5.5SC320 | KSM-5.5SC600 | KSM-5.5SC1000 |
| 6～6.5 | KSM-6SC60 | KSM-6SC120 | KSM-6SC180 | KSM-6SC240 | KSM-6SC320 | KSM-6SC600 | KSM-6SC1000 |
| 7～7.5 | KSM-7SC60 | KSM-7SC120 | KSM-7SC180 | KSM-7SC240 | KSM-7SC320 | KSM-7SC600 | KSM-7SC1000 |
| 7.5～8 | KSM-8SC60 | KSM-8SC120 | KSM-8SC180 | KSM-8SC240 | KSM-8SC320 | KSM-8SC600 | KSM-8SC1000 |
| 8～9 | KSM-9SC60 | KSM-9SC120 | KSM-9SC180 | KSM-9SC240 | KSM-9SC320 | KSM-9SC600 | KSM-9SC1000 |
| 9～10 | KSM-10SC60 | KSM-10SC120 | KSM-10SC180 | KSM-10SC240 | KSM-10SC320 | KSM-10SC600 | KSM-10SC1000 |
| 10～11 | KSM-11SC60 | KSM-11SC120 | KSM-11SC180 | KSM-11SC240 | KSM-11SC320 | KSM-11SC600 | KSM-11SC1000 |
| 11～12 | KSM-12SC60 | KSM-12SC120 | KSM-12SC180 | KSM-12SC240 | KSM-12SC320 | KSM-12SC600 | KSM-12SC1000 |
| 12～13 | KSM-13SC60 | KSM-13SC120 | KSM-13SC180 | KSM-13SC240 | KSM-13SC320 | KSM-13SC600 | KSM-13SC1000 |
| 13～14 | KSM-14SC60 | KSM-14SC120 | KSM-14SC180 | KSM-14SC240 | KSM-14SC320 | KSM-14SC600 | KSM-14SC1000 |
| 14～15 | KSM-15SC60 | KSM-15SC120 | KSM-15SC180 | KSM-15SC240 | KSM-15SC320 | KSM-15SC600 | KSM-15SC1000 |
| 15～16 | KSM-16SC60 | KSM-16SC120 | KSM-16SC180 | KSM-16SC240 | KSM-16SC320 | KSM-16SC600 | KSM-16SC1000 |
| 16～17 | KSM-17SC60 | KSM-17SC120 | KSM-17SC180 | KSM-17SC240 | KSM-17SC320 | KSM-17SC600 | KSM-17SC1000 |
| 17～18 | KSM-18SC60 | KSM-18SC120 | KSM-18SC180 | KSM-18SC240 | KSM-18SC320 | KSM-18SC600 | KSM-18SC1000 |
| 18～19 | KSM-19SC60 | KSM-19SC120 | KSM-19SC180 | KSM-19SC240 | KSM-19SC320 | KSM-19SC600 | KSM-19SC1000 |
| 19～20 | KSM-20SC60 | KSM-20SC120 | KSM-20SC180 | KSM-20SC240 | KSM-20SC320 | KSM-20SC600 | KSM-20SC1000 |
| 20～21 | KSM-21SC60 | KSM-21SC120 | KSM-21SC180 | KSM-21SC240 | KSM-21SC320 | KSM-21SC600 | KSM-21SC1000 |
| 21～22 | KSM-22SC60 | KSM-22SC120 | KSM-22SC180 | KSM-22SC240 | KSM-22SC320 | KSM-22SC600 | KSM-22SC1000 |
| 22～23 | KSM-23SC60 | KSM-23SC120 | KSM-23SC180 | KSM-23SC240 | KSM-23SC320 | KSM-23SC600 | KSM-23SC1000 |
| 23～24 | KSM-24SC60 | KSM-24SC120 | KSM-24SC180 | KSM-24SC240 | KSM-24SC320 | KSM-24SC600 | KSM-24SC1000 |
| 24～25 | KSM-25SC60 | KSM-25SC120 | KSM-25SC180 | KSM-25SC240 | KSM-25SC320 | KSM-25SC600 | KSM-25SC1000 |
| 25～26 | KSM-26SC60 | KSM-26SC120 | KSM-26SC180 | KSM-26SC240 | KSM-26SC320 | KSM-26SC600 | KSM-26SC1000 |
| 26～27 | KSM-27SC60 | KSM-27SC120 | KSM-27SC180 | KSM-27SC240 | KSM-27SC320 | KSM-27SC600 | KSM-27SC1000 |
| 27～28 | KSM-28SC60 | KSM-28SC120 | KSM-28SC180 | KSM-28SC240 | KSM-28SC320 | KSM-28SC600 | KSM-28SC1000 |
| 28～30 | KSM-30SC60 | KSM-30SC120 | KSM-30SC180 | KSM-30SC240 | KSM-30SC320 | KSM-30SC600 | KSM-30SC1000 |
| 30～32 | KSM-32SC60 | KSM-32SC120 | KSM-32SC180 | KSM-32SC240 | KSM-32SC320 | KSM-32SC600 | KSM-32SC1000 |
| 32～34 | KSM-34SC60 | KSM-34SC120 | KSM-34SC180 | KSM-34SC240 | KSM-34SC320 | KSM-34SC600 | KSM-34SC1000 |
| 34～36 | KSM-36SC60 | KSM-36SC120 | KSM-36SC180 | KSM-36SC240 | KSM-36SC320 | KSM-36SC600 | KSM-36SC1000 |
| 36～38 | KSM-38SC60 | KSM-38SC120 | KSM-38SC180 | KSM-38SC240 | KSM-38SC320 | KSM-38SC600 | KSM-38SC1000 |
| 38～41 | KSM-41SC60 | KSM-41SC120 | KSM-41SC180 | KSM-41SC240 | KSM-41SC320 | KSM-41SC600 | KSM-41SC1000 |
| 41～44 | KSM-44SC60 | KSM-44SC120 | KSM-44SC180 | KSM-44SC240 | KSM-44SC320 | KSM-44SC600 | KSM-44SC1000 |
| 44～47 | KSM-47SC60 | KSM-47SC120 | KSM-47SC180 | KSM-47SC240 | KSM-47SC320 | KSM-47SC600 | KSM-47SC1000 |
| 47～50 | KSM-50SC60 | KSM-50SC120 | KSM-50SC180 | KSM-50SC240 | KSM-50SC320 | KSM-50SC600 | KSM-50SC1000 |
| 51～54 | KSM-54SC60 | KSM-54SC120 | KSM-54SC180 | KSM-54SC240 | KSM-54SC320 | KSM-54SC600 | KSM-54SC1000 |
| 54～57 | KSM-57SC60 | KSM-57SC120 | KSM-57SC180 | KSM-57SC240 | KSM-57SC320 | KSM-57SC600 | KSM-57SC1000 |
| 57～60 | KSM-60SC60 | KSM-60SC120 | KSM-60SC180 | KSM-60SC240 | KSM-60SC320 | KSM-60SC600 | KSM-60SC1000 |
| 60～63 | KSM-63SC60 | KSM-63SC120 | KSM-63SC180 | KSM-63SC240 | KSM-63SC320 | KSM-63SC600 | KSM-63SC1000 |
| 64～67 | KSM-67SC60 | KSM-67SC120 | KSM-67SC180 | KSM-67SC240 | KSM-67SC320 | KSM-67SC600 | KSM-67SC1000 |
| 67～70 | KSM-70SC60 | KSM-70SC120 | KSM-70SC180 | KSM-70SC240 | KSM-70SC320 | KSM-70SC600 | KSM-70SC1000 |
| 70～73 | KSM-73SC60 | KSM-73SC120 | KSM-73SC180 | KSM-73SC240 | KSM-73SC320 | KSM-73SC600 | KSM-73SC1000 |
| 73～76 | KSM-76SC60 | KSM-76SC120 | KSM-76SC180 | KSM-76SC240 | KSM-76SC320 | KSM-76SC600 | KSM-76SC1000 |
| 76～79 | KSM-79SC60 | KSM-79SC120 | KSM-79SC180 | KSM-79SC240 | KSM-79SC320 | KSM-79SC600 | KSM-79SC1000 |
| 推奨内径 | アルミオキサイド | ||||||
|---|---|---|---|---|---|---|---|
| #60 | #120 | #180 | #240 | #320 | #600 | #1000 | |
| 4.5～5 | KSM-4.5AO60 | KSM-4.5AO120 | KSM-4.5AO180 | KSM-4.5AO240 | KSM-4.5AO320 | KSM-4.5AO600 | KSM-4.5AO1000 |
| 5～5.5 | KSM-5AO60 | KSM-5AO120 | KSM-5AO180 | KSM-5AO240 | KSM-5AO320 | KSM-5AO600 | KSM-5AO1000 |
| 5.5～6 | KSM-5.5AO60 | KSM-5.5AO120 | KSM-5.5AO180 | KSM-5.5AO240 | KSM-5.5AO320 | KSM-5.5AO600 | KSM-5.5AO1000 |
| 6～6.5 | KSM-6AO60 | KSM-6AO120 | KSM-6AO180 | KSM-6AO240 | KSM-6AO320 | KSM-6AO600 | KSM-6AO1000 |
| 7～7.5 | KSM-7AO60 | KSM-7AO120 | KSM-7AO180 | KSM-7AO240 | KSM-7AO320 | KSM-7AO600 | KSM-7AO1000 |
| 7.5～8 | KSM-8AO60 | KSM-8AO120 | KSM-8AO180 | KSM-8AO240 | KSM-8AO320 | KSM-8AO600 | KSM-8AO1000 |
| 8～9 | KSM-9AO60 | KSM-9AO120 | KSM-9AO180 | KSM-9AO240 | KSM-9AO320 | KSM-9AO600 | KSM-9AO1000 |
| 9～10 | KSM-10AO60 | KSM-10AO120 | KSM-10AO180 | KSM-10AO240 | KSM-10AO320 | KSM-10AO600 | KSM-10AO1000 |
| 10～11 | KSM-11AO60 | KSM-11AO120 | KSM-11AO180 | KSM-11AO240 | KSM-11AO320 | KSM-11AO600 | KSM-11AO1000 |
| 11～12 | KSM-12AO60 | KSM-12AO120 | KSM-12AO180 | KSM-12AO240 | KSM-12AO320 | KSM-12AO600 | KSM-12AO1000 |
| 12～13 | KSM-13AO60 | KSM-13AO120 | KSM-13AO180 | KSM-13AO240 | KSM-13AO320 | KSM-13AO600 | KSM-13AO1000 |
| 13～14 | KSM-14AO60 | KSM-14AO120 | KSM-14AO180 | KSM-14AO240 | KSM-14AO320 | KSM-14AO600 | KSM-14AO1000 |
| 14～15 | KSM-15AO60 | KSM-15AO120 | KSM-15AO180 | KSM-15AO240 | KSM-15AO320 | KSM-15AO600 | KSM-15AO1000 |
| 15～16 | KSM-16AO60 | KSM-16AO120 | KSM-16AO180 | KSM-16AO240 | KSM-16AO320 | KSM-16AO600 | KSM-16AO1000 |
| 16～17 | KSM-17AO60 | KSM-17AO120 | KSM-17AO180 | KSM-17AO240 | KSM-17AO320 | KSM-17AO600 | KSM-17AO1000 |
| 17～18 | KSM-18AO60 | KSM-18AO120 | KSM-18AO180 | KSM-18AO240 | KSM-18AO320 | KSM-18AO600 | KSM-18AO1000 |
| 18～19 | KSM-19AO60 | KSM-19AO120 | KSM-19AO180 | KSM-19AO240 | KSM-19AO320 | KSM-19AO600 | KSM-19AO1000 |
| 19～20 | KSM-20AO60 | KSM-20AO120 | KSM-20AO180 | KSM-20AO240 | KSM-20AO320 | KSM-20AO600 | KSM-20AO1000 |
| 20～21 | KSM-21AO60 | KSM-21AO120 | KSM-21AO180 | KSM-21AO240 | KSM-21AO320 | KSM-21AO600 | KSM-21AO1000 |
| 21～22 | KSM-22AO60 | KSM-22AO120 | KSM-22AO180 | KSM-22AO240 | KSM-22AO320 | KSM-22AO600 | KSM-22AO1000 |
| 22～23 | KSM-23AO60 | KSM-23AO120 | KSM-23AO180 | KSM-23AO240 | KSM-23AO320 | KSM-23AO600 | KSM-23AO1000 |
| 23～24 | KSM-24AO60 | KSM-24AO120 | KSM-24AO180 | KSM-24AO240 | KSM-24AO320 | KSM-24AO600 | KSM-24AO1000 |
| 24～25 | KSM-25AO60 | KSM-25AO120 | KSM-25AO180 | KSM-25AO240 | KSM-25AO320 | KSM-25AO600 | KSM-25AO1000 |
| 25～26 | KSM-26AO60 | KSM-26AO120 | KSM-26AO180 | KSM-26AO240 | KSM-26AO320 | KSM-26AO600 | KSM-26AO1000 |
| 26～27 | KSM-27AO60 | KSM-27AO120 | KSM-27AO180 | KSM-27AO240 | KSM-27AO320 | KSM-27AO600 | KSM-27AO1000 |
| 27～28 | KSM-28AO60 | KSM-28AO120 | KSM-28AO180 | KSM-28AO240 | KSM-28AO320 | KSM-28AO600 | KSM-28AO1000 |
| 28～30 | KSM-30AO60 | KSM-30AO120 | KSM-30AO180 | KSM-30AO240 | KSM-30AO320 | KSM-30AO600 | KSM-30AO1000 |
| 30～32 | KSM-32AO60 | KSM-32AO120 | KSM-32AO180 | KSM-32AO240 | KSM-32AO320 | KSM-32AO600 | KSM-32AO1000 |
| 32～34 | KSM-34AO60 | KSM-34AO120 | KSM-34AO180 | KSM-34AO240 | KSM-34AO320 | KSM-34AO600 | KSM-34AO1000 |
| 34～36 | KSM-36AO60 | KSM-36AO120 | KSM-36AO180 | KSM-36AO240 | KSM-36AO320 | KSM-36AO600 | KSM-36AO1000 |
| 36～38 | KSM-38AO60 | KSM-38AO120 | KSM-38AO180 | KSM-38AO240 | KSM-38AO320 | KSM-38AO600 | KSM-38AO1000 |
| 38～41 | KSM-41AO60 | KSM-41AO120 | KSM-41AO180 | KSM-41AO240 | KSM-41AO320 | KSM-41AO600 | KSM-41AO1000 |
| 41～44 | KSM-44AO60 | KSM-44AO120 | KSM-44AO180 | KSM-44AO240 | KSM-44AO320 | KSM-44AO600 | KSM-44AO1000 |
| 44～47 | KSM-47AO60 | KSM-47AO120 | KSM-47AO180 | KSM-47AO240 | KSM-47AO320 | KSM-47AO600 | KSM-47AO1000 |
| 47～50 | KSM-50AO60 | KSM-50AO120 | KSM-50AO180 | KSM-50AO240 | KSM-50AO320 | KSM-50AO600 | KSM-50AO1000 |
| 51～54 | KSM-54AO60 | KSM-54AO120 | KSM-54AO180 | KSM-54AO240 | KSM-54AO320 | KSM-54AO600 | KSM-54AO1000 |
| 54～57 | KSM-57AO60 | KSM-57AO120 | KSM-57AO180 | KSM-57AO240 | KSM-57AO320 | KSM-57AO600 | KSM-57AO1000 |
| 57～60 | KSM-60AO60 | KSM-60AO120 | KSM-60AO180 | KSM-60AO240 | KSM-60AO320 | KSM-60AO600 | KSM-60AO1000 |
| 60～63 | KSM-63AO60 | KSM-63AO120 | KSM-63AO180 | KSM-63AO240 | KSM-63AO320 | KSM-63AO600 | KSM-63AO1000 |
| 64～67 | KSM-67AO60 | KSM-67AO120 | KSM-67AO180 | KSM-67AO240 | KSM-67AO320 | KSM-67AO600 | KSM-67AO1000 |
| 67～70 | KSM-70AO60 | KSM-70AO120 | KSM-70AO180 | KSM-70AO240 | KSM-70AO320 | KSM-70AO600 | KSM-70AO1000 |
| 70～73 | KSM-73AO60 | KSM-73AO120 | KSM-73AO180 | KSM-73AO240 | KSM-73AO320 | KSM-73AO600 | KSM-73AO1000 |
| 73～76 | KSM-76AO60 | KSM-76AO120 | KSM-76AO180 | KSM-76AO240 | KSM-76AO320 | KSM-76AO600 | KSM-76AO1000 |
| 76～79 | KSM-79AO60 | KSM-79AO120 | KSM-79AO180 | KSM-79AO240 | KSM-79AO320 | KSM-79AO600 | KSM-79AO1000 |
